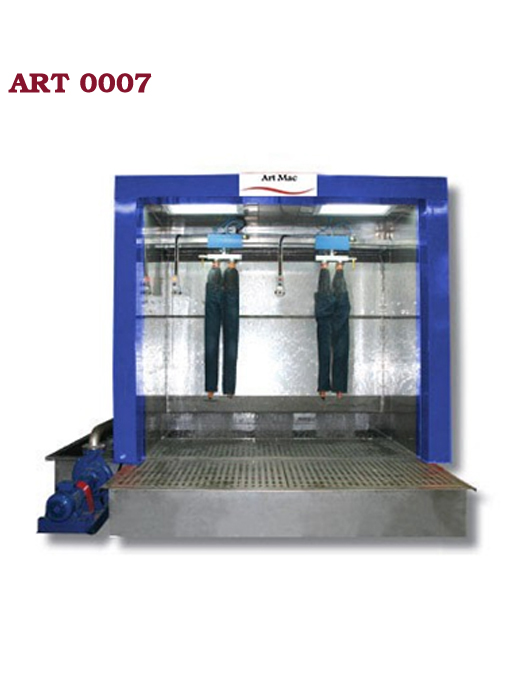

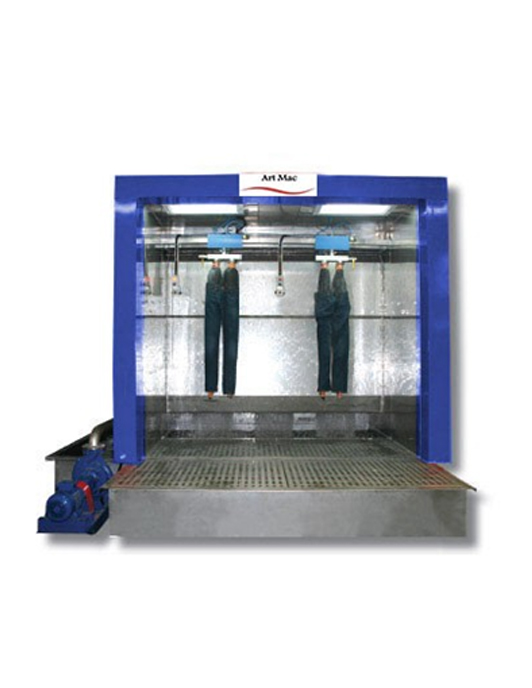

Eco-Friendly Professional Spray and Chemical Application Cabinets
The construction of chemical application cabinet consists of 304 Cr-Ni stainless steel panels. The water curtain, water tank and filtration tank having a thickness of 2 mm, and the tank on the top area having a thickness of 1.5 mm are all made of 304 Cr-Ni stainless steel. In this system, the air is flushed by the nozzles. Any chemical or permanganate particles unavoidable by water screen are bound by those flushing nozzles. The nozzles can be cleaned when needed, as they are easily detachable. There are two different separate valves functioning in order to adjust the pressure of the top carriage container and nozzles. There is a double filtration system for the water, which is carried by the pump from the bottom tank to the one located on top of the cabinet. By this double filtration system, the impurity of water is prevented. The water used in the system is discharged by an relief valve.
The chemical particles are bound properly by the help of the water screen and air flushing system. There are two fan absorption units at the bottom and centre sections of the water screens. By this system, a very effective absorption is achieved and the diffusion of chemical odour through the environment is prevented.
The electrical board having the necessary thermal and contactor protections is located on the cabinet. The illumination is provided by fluorescent armatures. The length of the cabinet varies depending on the number of robots.

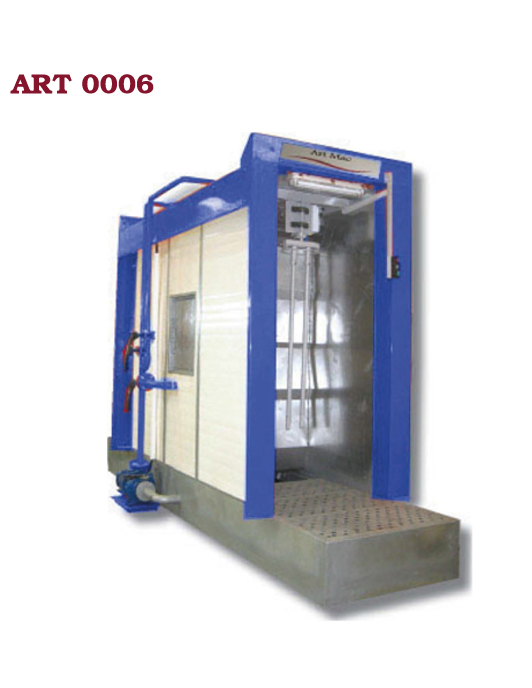

Semi-Professional Spray Cabinets
The construction of chemical application cabinet consists of 304 Cr-Ni stainless steel or galvanized-sheet metal. The water screen, water tank and filtration tank having a thickness of 2 mm, and the tank on the top area having a thickness of 1.5 mm are made of 304 Cr-Ni stainless steel. There is no nozzle in this system for air flushing. The water screen binds most of the chemicals. Any chemical or permanganate particles unavoidable by water screen are absorbed by a fan and exhausted by a chimney. There is a double filtration system for the water, which is carried by the pump from the bottom tank to the one located on top of the cabinet. By this double filtration system, the impurity of water is prevented. The water used in the system is discharged by an relief valve.
In this system, there is no chemical odour inside but there is a certain amount of chemicals exhausted outside by a chimney.
The electrical board having the necessary thermal and contactor protections is located on the cabinet. The illumination is provided by fluorescent armatures. The length of the cabinet varies depending on the number of robots.
